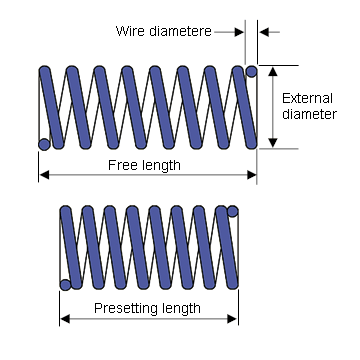

Dimensions |
|
|
| |
|
 |
 |
|
Sample data for 1.0 mm wire diameter
|
No.1 |
No.2 |
No.3 |
No.4 |
No.5 |
No.6 |
No.7 |
No.8 |
Wire
diameter |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
External
diameter |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
Central
diameter |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
Internal
diameter |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
Free
length |
8.73 |
11.85 |
15.03 |
18.18 |
21.26 |
24.44 |
27.49 |
31.05 |
Total number
of coils |
3.50 |
4.50 |
5.50 |
6.50 |
7.50 |
8.50 |
9.50 |
10.50 |
Number of
active coils |
1.50 |
2.50 |
3.50 |
4.50 |
5.50 |
6.50 |
7.50 |
8.50 |
Spring
pitch |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
Presetting
load(N) |
2.54 |
2.32 |
2.26 |
2.17 |
2.15 |
2.17 |
2.08 |
2.26 |
Presetting
length |
6.00 |
8.50 |
11.0 |
13.00 |
15.00 |
17.50 |
20.00 |
22.00 |
Both ends
grinding |
No |
No |
No |
No |
No |
No |
No |
No |
Sample data for 0.5 mm wire diameter
|
No.1 |
No.2 |
No.3 |
No.4 |
No.5 |
No.6 |
No.7 |
No.8 |
Wire
diameter |
0.50 |
0.50 |
0.50 |
0.50 |
0.50 |
0.50 |
0.50 |
0.50 |
External
diameter |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
Central
diameter |
2.50 |
2.50 |
2.50 |
2.50 |
2.50 |
2.50 |
2.50 |
2.50 |
Internal
diameter |
2.00 |
2.00 |
2.00 |
2.00 |
2.00 |
2.00 |
2.00 |
2.00 |
Free
length |
4.10 |
5.60 |
7.10 |
8.50 |
9.90 |
11.60 |
13.20 |
14.80 |
Total number
of coils |
3.50 |
4.50 |
5.50 |
6.50 |
7.50 |
8.50 |
9.50 |
10.50 |
Number of
active coils |
1.50 |
2.50 |
3.50 |
4.50 |
5.50 |
6.50 |
7.50 |
8.50 |
Spring
pitch |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
Presetting
load(N) |
0.56 |
0.66 |
0.71 |
0.63 |
0.41 |
0.45 |
0.43 |
0.36 |
Presetting
length |
2.50 |
3.00 |
3.50 |
4.50 |
7.00 |
8.00 |
9.50 |
11.00 |
Both ends
grinding |
No |
No |
No |
No |
No |
No |
No |
No |
|
|
|
|

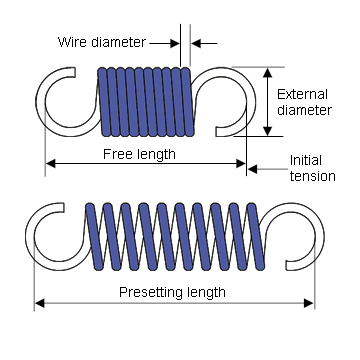

Dimensions |
|
|
| |
|
 |
 |
|
Sample data for 1.0 mm wire diameter
|
No. 1 |
No. 2 |
No. 3 |
No. 4 |
No. 5 |
No. 6 |
No. 7 |
No. 8 |
No. 9 |
No.10 |
Wire
diameter |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
External
diameter |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
5.70 |
Central
diameter |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
4.70 |
Internal
diameter |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
3.70 |
Free
length |
19.70 |
23.40 |
29.20 |
33.80 |
39.20 |
44.40 |
49.50 |
53.60 |
59.30 |
63.50 |
Number of
active coils |
9.00 |
13.00 |
18.00 |
22.00 |
27.00 |
32.00 |
36.00 |
41.50 |
45.50 |
50.00 |
Presetting
load(N) |
0.86 |
0.90 |
0.93 |
0.95 |
1.00 |
0.95 |
0.91 |
0.94 |
0.95 |
0.94 |
Presetting
length |
24.20 |
29.90 |
38.20 |
44.80 |
52.70 |
60.40 |
67.50 |
74.30 |
82.00 |
88.50 |
|
|
|
|
|
|
|
|
|
