| Question 1: How ultra- low temperature air is generated by the UCAG ? |
| Question 2: How long is the life of the UCAG ? |
Question 3: I have a product to be cooled , but I do not know how to determine
the adequate model of the UCAG.
|
|
|
Question 1: How ultra- low temperature air is generated by the UCAG ?

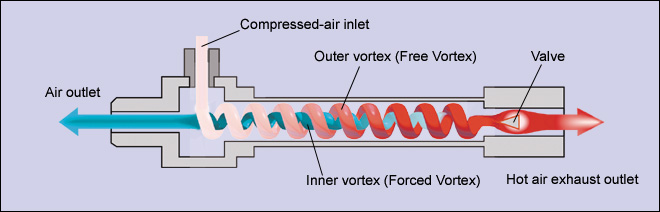

Ultra- low temperature air is generated by the UCAG applying the Vortex
Tube Theory.
After entering into the UCAG , compressed-air goes through several nozzles
which are designed to force the air to spin. The air , being transformed
into spinning air , undergoes separation into cold air and hot air , and
the cold air moves to the cold end of the UCAG.
|
Question 2: How long is the life of the UCAG ?
The UCAG has no movable parts and uses no cooling medium. If incoming compressed
air is clean, no maintenance is needed and the life of the UCAG will be
an indefinite period of time.
|
Question 3: I have a product to be cooled , but I do not know how to determine
the adequate model of the UCAG.
This is really a bother to everyone.
As a first step, gather information on the product you want to cool, such
as material, size, weight, actual and desired temperature of the product,
inner heat, etc. Based on these information, the amount of heat to be removed
to cool the product can be calculated.
Next, collect information on use environment of the UCAG, such as compressed
air volume, pipe diameter of compressed- air supply, compressed-air pressure,
with or without valves, etc.
Lastly, determine the adequate UCAG model and its number of pieces to be
used by comparing the amount of heat to be removed to cool the product
and capacity of each UCAG model.
|
|
|
However, determining the adequate UCAG model might be a little complicated
work for everyone because various factors are intricately involved. Sanwa’s
sales staffs are always ready to help you select the adequate model of
the UCAG with full confidence.
Please feel free to contact us.
|
|
|
|
|
|
|
|
