| Performance of the UCAG model |
|
|
| Models |
Compressed-air
(Mpa) |
Air consumption
(l/min) |
Cold air ratio
(%) |
Lowest temp. obtained
( )
*1 |
Max. temp. difference
（） |
Weight
(g) |
Compressor capacity
*2 |

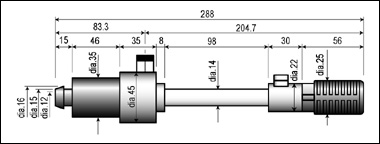

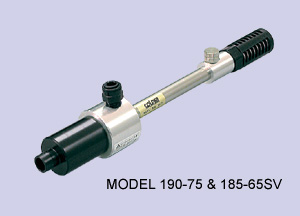

| 190-75SV |
0.3 - 0.7 |
290 - 650 |
20 - 85 |
-50 |
70 |
335 |
5KW - |
| 185-65SV |
0.3 - 0.7 |
170 - 360 |
20 - 85 |
-45 |
65 |
335 |
3.5KW - |

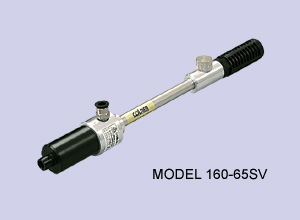

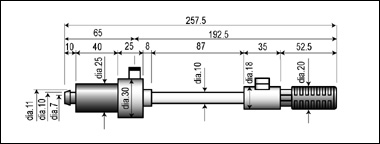

| 160-65SV |
0.3 - 0.7 |
110 - 220 |
15 - 70 |
-45 |
65 |
147 |
2KW - |
| *1 |
In case of compressed- air pressure 0.7Mpa, intake air temp.20（without silencer) |
| *2 |
Compressor capacity to obtain Lowest temp. |
|
|
|

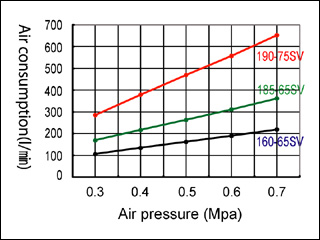

| Graph A-1 |
|
|
|
|
|
 |
|
|

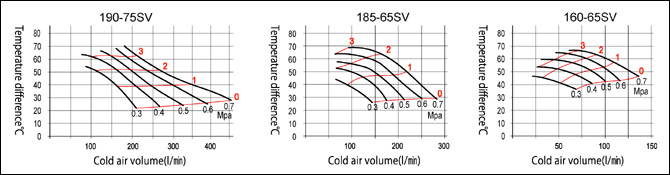

| Graph B-1 |
|
|
 |
|
| Performance--------In case of the UCAG 190-75SV |
 |
In case compressed- air pressure is 0.7Mpa, the UCAG consumes 650 l/min
of air( Refer to graph A-1). The temperature difference between cold air
and compressed-air as well as cold air volume can be regulated with control
knob.
For instance, if you turn the knob 360 degree from complete closed position,
you can obtain cold air of 350 l/min with the temperature difference of
40 .
(Refer to graph B-1. Difference of the temperature on the graph was measured
by digital temperature gauge at about 50-60mm inside from the cold air
outlet to minimize influence of the ambient air. )
For specific applications, choose the combinations of cold air temperature
and volume as needed with control knob. |
|
| Performance of each model |
|
|
| Models |
Pressure of
supplied air (Mpa) |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
| 190-75SV |
W
*1 |
158 |
204 |
253 |
294 |
343 |
| 1.5 |
1.5 |
2 |
2 |
2 |
| 185-65SV |
W
*1 |
94 |
142 |
184 |
232 |
279 |
| 0.5 |
1 |
1 |
1.5 |
1.5 |
| 160-65SV |
W
*1 |
57 |
81 |
105 |
123 |
156 |
| 0 |
0 |
1 |
1 |
1 |
| *1 |
Number of turn of control knob : Anti- clockwise turn of control knob from
fully turned position. |
| * |
Operational conditions: Ambient air temperature 20, compressed air temperature at inlet 20, dry air ( dew point -40 ). |
| * |
Note that above figures are for reference only and vary according to the actual operational conditions. |
|
| Option |
|
|
|
|
 |
|
|
160-65SV |
185-65SV
190-75SV |
Optional Lock nut
(for mounting) |
Thread standard |
M20x1 |
M28x1 |
| Panel hole diameter |
20mm |
28mm |
| Panel thickness max. |
2.3mm |
2.3mm |
| Parts No. |
RN20 |
RN28 |
|
|
|
|
