H030 H050 H075 H150 H200 C050 C150

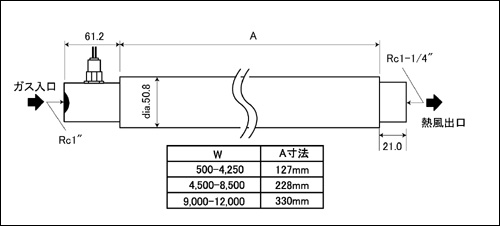

200型インライン 　 仕様 ヒーティング･レンジ 500W〜12,000W 最大温度 700℃ 必要最低空気量 品番表参照 最大風量 2,830�g/分 　 入気側ネジ Rc1 吐出側ネジ Rc1-1/4 　 　 品番表 　 単相 三相 必要最低 空気量 (�g/分) 100V 200V 200V 400V 500W H200-00500-1-1 H200-00500-2-1 H200-00500-2-3 H200-00500-4-3 272 750W H200-00750-1-1 H200-00750-2-1 H200-00750-2-3 H200-00750-4-3 272 1000W H200-01000-1-1 H200-01000-2-1 H200-01000-2-3 H200-01000-4-3 272 1250W H200-01250-1-1 H200-01250-2-1 H200-01250-2-3 H200-01250-4-3 272 1500W H200-01500-1-1 H200-01500-2-1 H200-01500-2-3 H200-01500-4-3 272 1750W H200-01750-1-1 H200-01750-2-1 H200-01750-2-3 H200-01750-4-3 272 2000W H200-02000-1-1 H200-02000-2-1 H200-02000-2-3 H200-02000-4-3 272 2250W H200-02250-1-1 H200-02250-2-1 H200-02250-2-3 H200-02250-4-3 272 2500W H200-02500-1-1 H200-02500-2-1 H200-02500-2-3 H200-02500-4-3 272 2750W H200-02750-2-1 H200-02750-2-3 H200-02750-4-3 272 3000W H200-03000-2-1 H200-03000-2-3 H200-03000-4-3 272 3250W H200-03250-2-1 H200-03250-2-3 H200-03250-4-3 272 3500W H200-03500-2-1 H200-03500-2-3 H200-03500-4-3 272 3750W H200-03750-2-1 H200-03750-2-3 H200-03750-4-3 272 4000W H200-04000-2-1 H200-04000-2-3 H200-04000-4-3 272 4250W H200-04250-2-1 H200-04250-2-3 H200-04250-4-3 351 4500W H200-04500-2-1 H200-04500-2-3 H200-04500-4-3 351 5000W H200-05000-2-1 H200-05000-2-3 H200-05000-4-3 351 5500W H200-05500-2-1 H200-05500-2-3 H200-05500-4-3 419 6000W H200-06000-2-1 H200-06000-2-3 H200-06000-4-3 419 6500W H200-06500-2-1 H200-06500-2-3 H200-06500-4-3 482 7000W H200-07000-2-1 H200-07000-2-3 H200-07000-4-3 482 7500W H200-07500-2-1 H200-07500-2-3 H200-07500-4-3 546 8000W H200-08000-2-1 H200-08000-2-3 H200-08000-4-3 546 8500W H200-08500-2-1 H200-08500-2-3 H200-08500-4-3 606 9000W H200-09000-2-3 H200-09000-4-3 606 9500W H200-09500-2-3 H200-09500-4-3 666 10000W H200-10000-2-3 H200-10000-4-3 666 10500W H200-10500-2-3 H200-10500-4-3 722 11000W H200-11000-2-3 H200-11000-4-3 722 11500W H200-11500-2-3 H200-11500-4-3 804 12000W H200-12000-2-3 H200-12000-4-3 804 　 外寸図
